MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC Graphics Card

Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

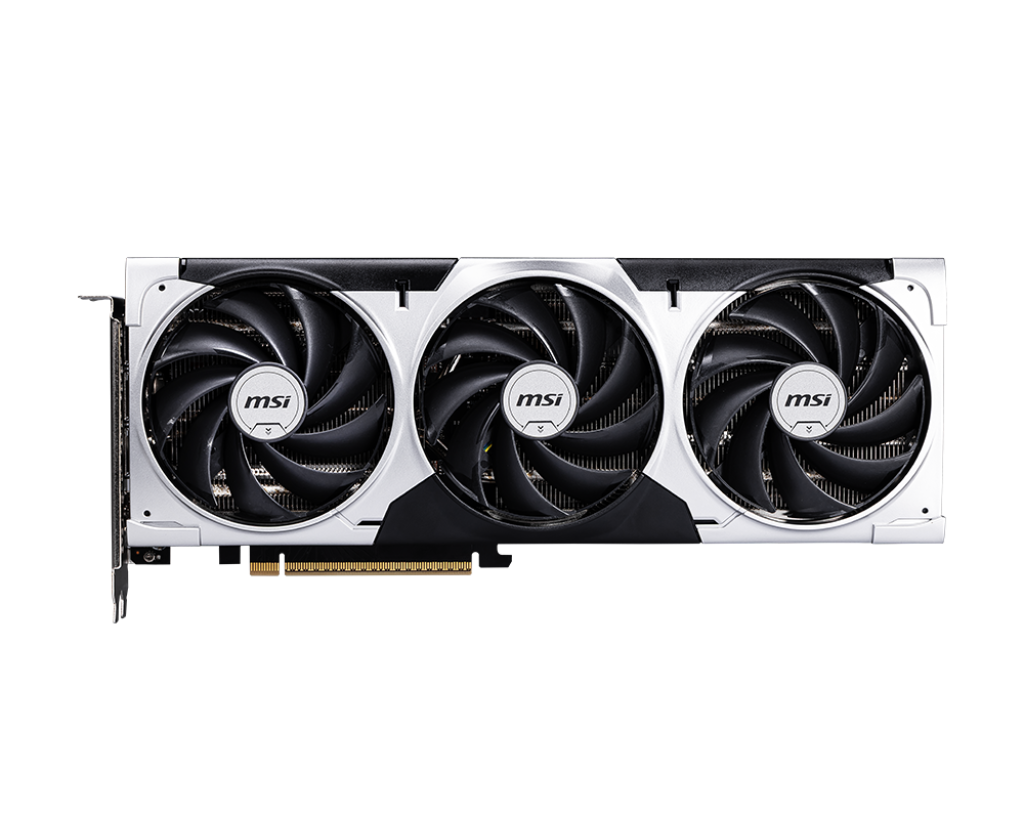

TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

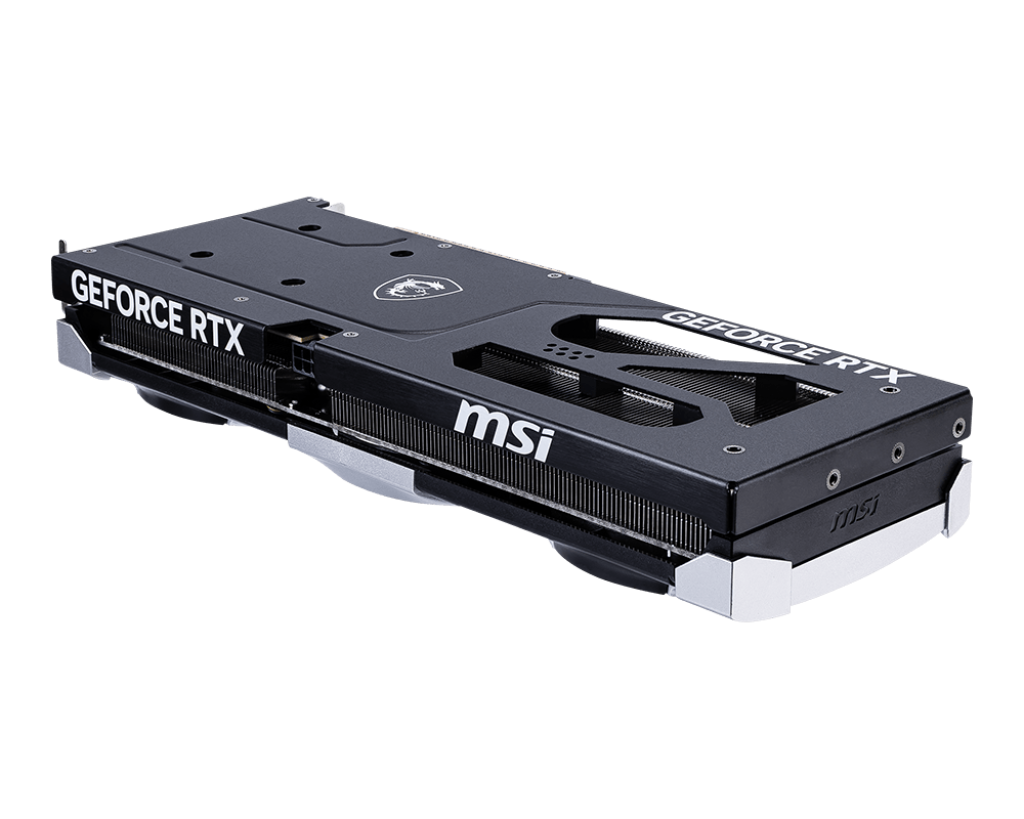

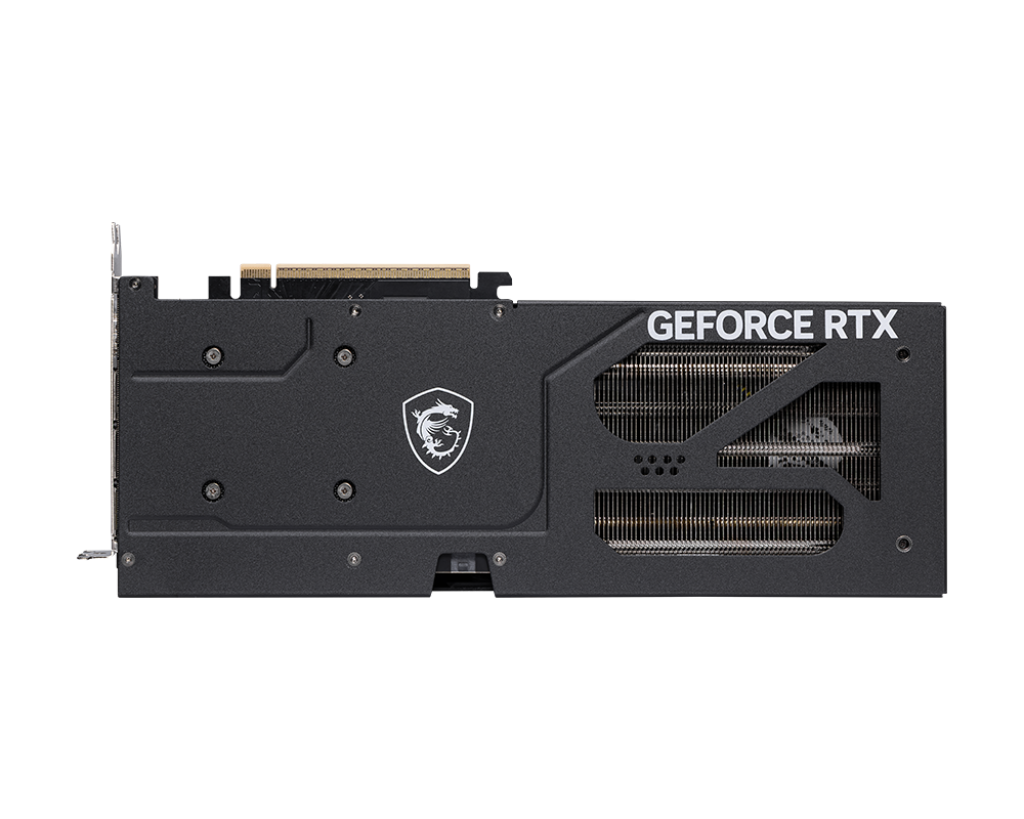

Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

MSI GeForce RTX™ 5060 Ti 16G VENTUS 3X OC – Full Specifications

Marketing Name: GeForce RTX™ 5060 Ti 16G VENTUS 3X OC
Model Name: G506T-16V3C
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
Interface: PCI Express® Gen 5 x16 (uses x8)
Core Clocks:
 • Extreme Performance: 2617 MHz (via MSI Center)
 • Boost Clock: 2602 MHz
CUDA® Cores: 4608 Units
Memory Speed: 28 Gbps
Memory: 16GB GDDR7
Memory Bus: 128-bit

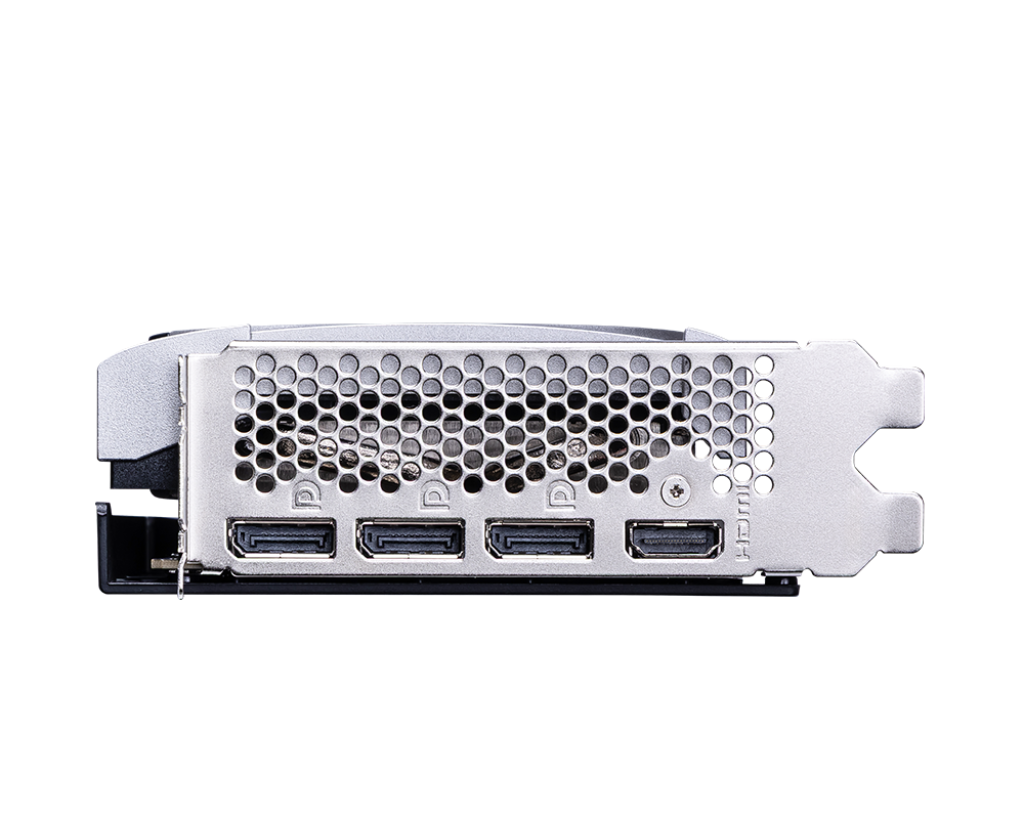

Output Ports:
 • DisplayPort x 3 (v2.1b)
 • HDMI™ x 1 (v2.1b, supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Yes
Power Consumption: 180 W
Power Connectors: 8-pin x 1
Recommended PSU: 600 W
Card Dimensions (mm): 304 x 121 x 44 mm
Weight (Card / Package): 860 g / 1229 g
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® Technology: Yes
Digital Maximum Resolution: 7680 x 4320
